Creating Healthier Indoor Air Quality

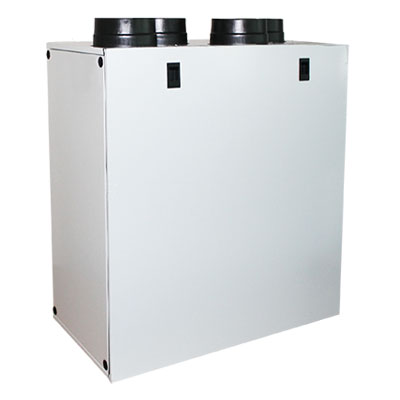

AeroFresh 240
Heat Recovery Unit
The compact Aerofresh 240 is suitable for larger apartments to smaller sized homes and can be vertically installed into a cupboard or narrow space. It features a high efficiency counter-flow heat exchanger that can recover up to 80% of the heat.
An Ultra-Compact, Quiet Achiever
The Aerofresh 240 is a compact heat recovery unit designed to transfer heat from humid air, extracted from wet rooms (kitchens and bathrooms) to provide maximum comfort with simple operation and high efficiency. It extracts the heat energy which would have otherwise been lost during the extract process and transfers this to the fresh, filtered supply air which is drawn in from outside.
This is done using high efficiency counter - flow heat exchangers which can recover up to 80 % of the heat.
The Aerofresh 240 can be installed in a cupboard or narrow space, thanks to its ultra-compact size and easy - to - fit air distribution system allows each room to properly ventilate.

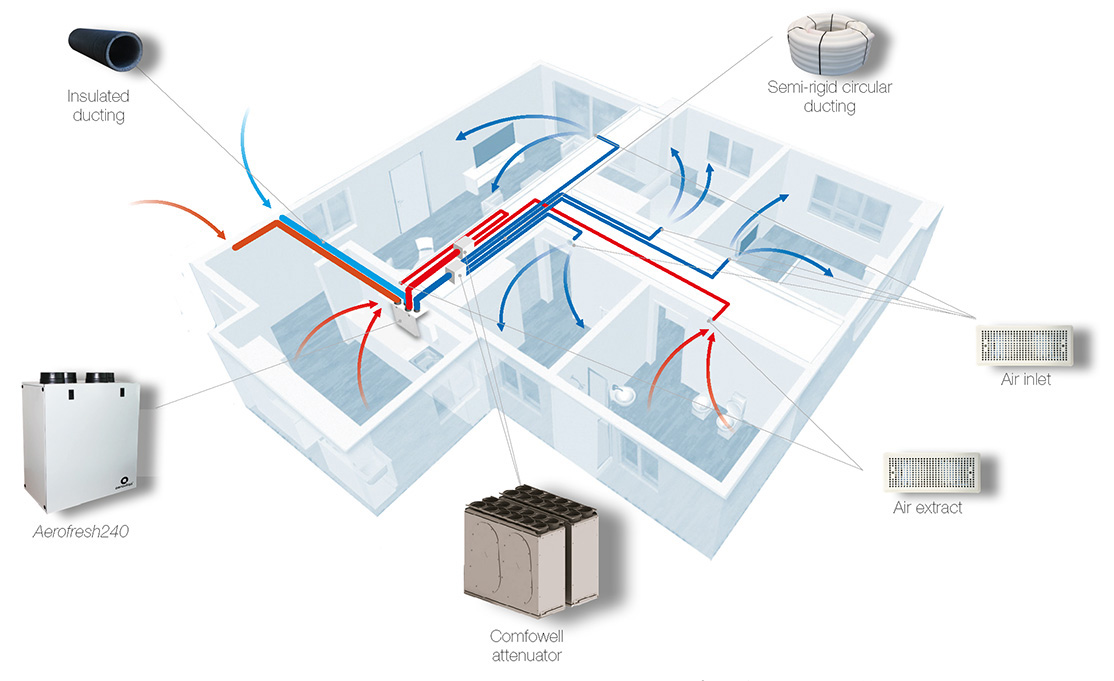

Ventilation System Example
Application:
New build.
How it works:
A continuously operating Aerofresh 240 heat recovery unit transfers heat from humid air extracted from wet rooms to warm incoming fresh air during winter which is ducted to habitable rooms. In summer the reverse process occurs with cooler indoor air being extracted, cooling the incoming fresh air.
Thanks to the easy-to-fit air distribution system, each room can be ventilated to achieve excellent indoor air quality.The boost function enables rapid extract of increased moisture or pollutant levels. It also provides discrete installation and quite operation.
Energy saving:
The preheated/precooled fresh air and continuous air changes reduce the demand for additional heating/air-conditioning.
The EC brushless motors significantly reduce the energy consumption.
Indoor Air Quality:
A correctly specified mechanical ventilation system can ensure the quality of the indoor air is constantly maintained for the health and well-being of the occupants as well as of the building.Duly maintained filters ensure that incoming air is suitably filtered of dust and pollen before if enters the home
Aerofresh 240 Controller
Multi-function remote control panel with LCD display, supplied as standard with the Aerofresh 240.
Features
Specifications
- Internal body - EPP (Polythlene)
- Unit housing - Painted Galvanised Steel
Technical Data
| Operating Speed | 40% | 60% | 80% | 100% |
|---|---|---|---|---|
| Intake | 31 | 41 | 48 | 50 |
| Supply | 29 | 37 | 44 | 46 |
| Extract | 27 | 36 | 44 | 46 |
| Exhaust | 30 | 41 | 47 | 49 |
| Breakout | 27 | 36 | 45 | 48 |
* Sound Pressure level @ 3m in free field
A - Intake air from outside
B - Exhaust air to outside
C - Supply air to inside
D - Extract air from inside
E - Winter condensation drainage
F - Summer condensation drainage
Performance Curve

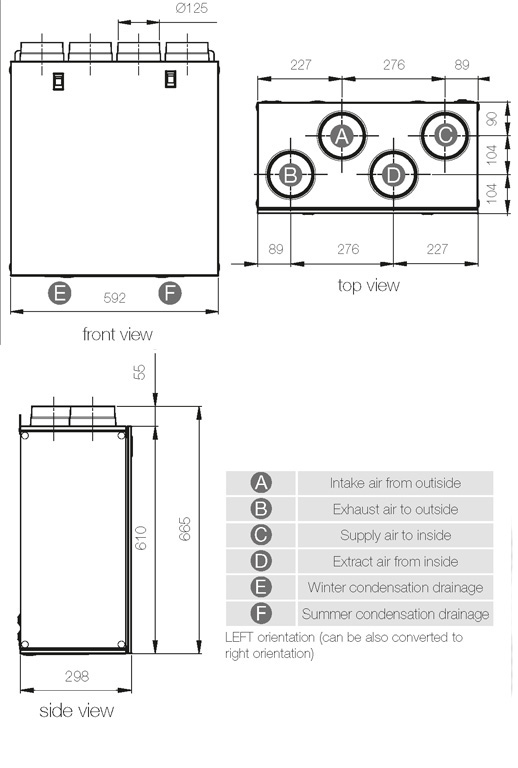

Dimensional Data
AeroFresh 240
